Mixing two HighDef sources?

Post by Joris »

Welcome to VJ'ing the year 2011. Composite outputs are disappearing, computers are becoming faster and faster, HD projectors are becoming more common. Some of these developments can be considered good, others less so, but whatever your thoughts are on it, your trusty old V4 is just not cutting it anymore.

These days everyone is looking for that holy grail: affordable HD mixing. The V8, boasting two VGA inputs, but no mixing between them, and no VGA out, is not really a contender. Sure, if you got the €9200 to dish out on an Edirol 440HD -interestingly advertised as 'affordable HD mixing'- that's just peachy for you.

The rest of us would like something cheaper. Luckily the worldwide VJ community is not afraid of a little DIY, and it has come up with a few alternatives.

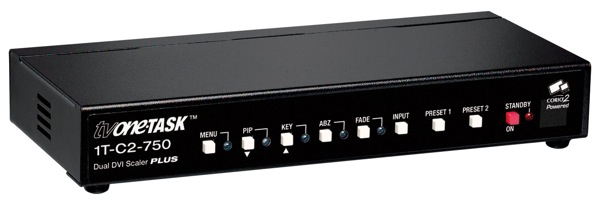

It's all about this little gizmo, the TV One 1T-C2-750 Dual DVI mixer. It's quite a handy little device, that straight out of the box allows you to switch or fade between two DVI sources, and can output up to 2048x2048 in resolution. With some tweaking/tinkering it can also be pushed to TripleHead2Go rez. Aside from that, it also supports luma/chroma keying, and picture in picture. And all this for a list price of around $900.

Now of course we don't want to just cut or autofade between our sources, we want full crossfader control like on our V4s. Enter VJ community!

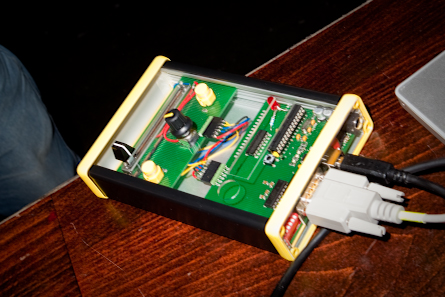

First off the bat was Toby Harris, who first started mentioning an out of the box, all hardware mixing solution based on the device. Unfortunately, at the time of writing this, the product is still in the prototype stage. The glimpse some of us were fortunate enough to catch at the Visual Berlin Festival in 2010 was great, and we can only hope it goes into production soon.
Image by Andreas Apelqvist

So then, just when you thought it was time to drag out your Korg KrossFour again, VJ Leo and VJ Fader appear on the horizon. Running a simple but effective Midi to RS232 conversion with the help of a Processing sketch, all you need for full on crossfading mayhem is a simple USB-RS232 cable and your midi controller of choice. More info at neuromixer.com/imixhd/ and direct download here. The code is left open source, so other artists can add their own functionality if desired.

Although an all hardware solution has plenty of appeal, a lot can be said for running the conversion in software as well. Since the overhead of the conversion is pretty low, and a computer very likely to be present anyway, a few other people have gone in this direction as well.

Tom Bassford, aka SleepyTom has made working versions of the conversion for Quartz Composer and VVVV. Also Anton Marini, aka Vade has gone the QC route, with source code available here.

With all the accessible coding platforms covered, there's no reason we shouldn't see the venue screens covered in glorious HD pixels this year! If you have any experience with the device and/or the software to control it, please feel free to share via the comments!

Wants to marry Resolume, and Resolume said "yes!"
Posts: 707
Joined: Mon Feb 05, 2007 09:39
Location: UK

Mixing two HighDef sources?

Post by Basic »

Good job! nice to see something working and will be great to see what other people do. Also the fact it can be used with th2go is excellent! ive seen some crazy setups to get th2go working! Can't wait for the results!!!

User avatar
Hasn't felt like this about software in a long time
Posts: 121
Joined: Sat Apr 30, 2005 17:30
Location: Lyon/Detroit

Re: Mixing two HighDef sources?

Post by juLiE »

Really wonderful, thanx for this info and video! :D
2013 - Present: Dell Inspiron 7720 laptop, Win 7 sp1, Nividia GeForce GT 650M
2008 - 2012: Dell Vostro 1700 laptop, Win XP sp3, Nividia GeForce 8600M GT
2004 - 2008: Mini PC ITX...
Official Website: http://www.juliemeitz.com

User avatar
Is seriously in love with Resolume. Met the parents and everything
Posts: 362
Joined: Thu Nov 27, 2008 23:30

Re: Mixing two HighDef sources?

Post by francoe »

Oh, that's great!!
