DMX Artnet Control Arena 6

Post your questions here and we'll all try to help.
Post Reply
SandroVesti
Posts: 2
Joined: Thu Jan 31, 2019 07:53

DMX Artnet Control Arena 6

Post by SandroVesti »

Hii
I have a problem, i will control Resolume Arena from a AMX-Panel with an AMX-DMX converter and then a DMX-Artnet converter to a computer. Now i recevie a command but the shortcut doesnt work. Does anyone know this problem?

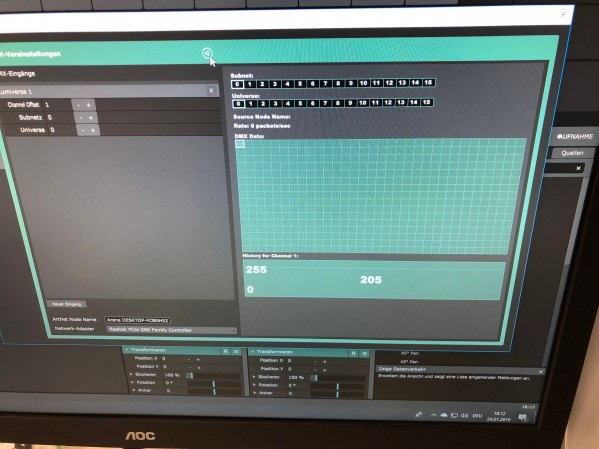

In the attachments i have a picture where you see the input.
Thank you

User avatar
Arvol
Posts: 2893
Joined: Thu Jun 18, 2015 17:36
Location: Oklahoma, USA

Re: DMX Artnet Control Arena 6

Post by Arvol »

so according to your picture resolume is seeing input from your DMX device. What happens when you go into DMX shortcuts, click on a parameter, and then send a DMX value. Does it matter that shortcuts? If so what's is the specific issue that is not working?

User avatar
SystemD
Posts: 123
Joined: Sun Jan 25, 2009 19:57
Location: Caen, France

Re: DMX Artnet Control Arena 6

Post by SystemD »

Hi SandroVesti,
There is a problem with the Artnet to DMX converter. The name of your node should appear in : "Source Node Name". What is the model and how do you configure it ?

Joris
Posts: 5186
Joined: Fri May 22, 2009 11:38

Re: DMX Artnet Control Arena 6

Post by Joris »

You have your Channel Offset set to 1, which means Resolume will shift all channel assignments up by 1 and only respond to channel 2 and higher.

Since you're only receiving data on channel 1, you'll have to set the Channel Offset back to 0.

https://resolume.com/support/en/dmx-sho ... nel-offset

Joris
Posts: 5186
Joined: Fri May 22, 2009 11:38

Re: DMX Artnet Control Arena 6

Post by Joris »

The name of your node should appear in : "Source Node Name".
Source Node Name is where you can change the name that this instance of Resolume uses for its own Art-Net node. It has nothing to do with other nodes on the network.

https://resolume.com/support/en/dmx-shortcuts#node-name

SandroVesti
Posts: 2
Joined: Thu Jan 31, 2019 07:53

Re: DMX Artnet Control Arena 6

Post by SandroVesti »

Arvol wrote: Sat Feb 02, 2019 02:13 so according to your picture resolume is seeing input from your DMX device. What happens when you go into DMX shortcuts, click on a parameter, and then send a DMX value. Does it matter that shortcuts? If so what's is the specific issue that is not working?

Yes I became every shortcut i click on the DMX device, but when i edit the DMX shortcuts to a movie or clip this one do not react. What influence does the Value have to the numbre which is sent by the dmx device?

User avatar
Arvol
Posts: 2893
Joined: Thu Jun 18, 2015 17:36
Location: Oklahoma, USA

Re: DMX Artnet Control Arena 6

Post by Arvol »

It varies from parameter to parameter. If you're using a single channel to trigger a video, anything above a 0 will fire off that cue. If you're moving a brightness slider, then your 0-255 DMX value will become 0-1 or 0-100 for that slider.

To test firing a clip, can you assign DMX address 1 to a clip and then toggle the DMX value from 0 to 255 via your controller? This should get you a playing clip.
