Wire - Slice to Shape creates black borders

[cosmowe]

Hello dear Resolumes,

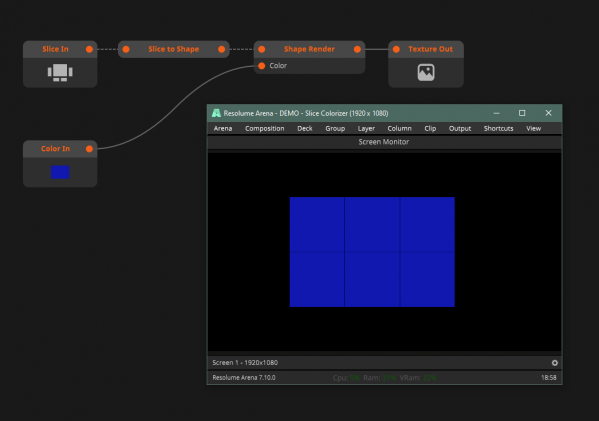

using the "slice to shape" or the "shape render" node generates a 1px black border - don't know which of these. Visible if you snap the slices together in the advanced output. Is this on purpose?

--begin-wire-patch--
704.3oc0U00aZCCE8uBxOGWY6XGmvaDHHsm1z5dqhGBIlh0B1nDm1tUk+66lDJDJzRWEZRCjBjaN49w4d789LJyZLpLm1ZpPiu6YzpR6F3ODOjs1ss1gV3gbVvB2CoMcFZ71Cy+DXBOzlTmpTmVbDRwKHI6gxNmG4myiUqS2p.XfIiMWAY5yHR6kTmqTur10aRapbolr9ab+BdkwHS8lkpRjG5gzhZv.MnowCszVax6fsVouesCMNDxlG04t0.Den5eBM1mB+9KzXljCuRVQZUeTxA2JkAQRVf.qBnqvbVFAGRYoXRdVJgqjbQ.qMnpxJfZQiIcdvl8S3cePmqrvCyrE1R39UvmfTBoyTWI31UNszvgRopPmoNTI2YpKJ7tdWVzRLq044JHeu6kVCv3oaZi9ssQezWLH.E6Sx8e.pm0Q8Q7vKS8wIISv7Y9g3vjDAljDOgOMdFYRRx0l5cpmb0kJV9ghokxNhwNPU+nG8nuB9.P3eJaspv93.22c6dOipz2afiOMdWMV8XAMmG91rJeZTBlOWB7KeNAK3TQrj5mLgFesYUnrSc7AJZhG4FJIJj3GwXbI2Oj6SAag9TeISHhHRhHTRC7nWPsNsMU1oV4e5IEvrLXby.LYqsGcFDMoFlQc9FPKo+RCHRz0.3xfaDWVXSYTFlGEOGGMOXNNYJT6SYykSoj+qmo75gIN6na6lrCfDm1jfbF1hnqzl6w45x9sTuWynucuT6xUaao82F42RcYqGEqcil0As4vVKHTaTlp9Eh68v.iGHKXuEpTUYKpuTl0Gua0+tqV6Vm8WDGZvhyKwDgmHwfipeDIVxDV.lKmEfiBESfi5yDyl5S4wykCkXzOgDaWaKssu85C6GJJ9.J+8FIP859t3EZa.1sk1LUdcI3f+UKEOp1FHmayrQeWYxgAHM6TE0k8yWZZ9CnedAnN
--end-wire-patch--


Sunny Sunday
cosmowe

[Arvol]

You can loose the slice to shape and go directly from slice to shape renderer.
Then in your shape renderer turn the AA to 0

[cosmowe]

In this scenario yes.... but this don't solve the problem in my other projects

[Arvol]

AA is your problem, so yeah, it should

[cosmowe]

Thanks... I will test it!

[cosmowe]

I've checked it. And you where right. Anti-Aliasing was the problem.
AA to 0 caused some ugly ladders.... but Changing AA from IN to OUT does the Job for me.

Thanks for pointing me in the right direction.


Best wishes
cosmowe

[Zoltán]

Also there is a slice render node ;)
