Creating Projection Mapping Objects out of Paper

[Joris]

Here's how to get started with some crazy projection mapping paper objects in twelve easy steps. Because sometimes it's good to step away from the computer. Get your hands dirty with glue, scissors and paper.

Step 1: Watch this awesome video.




Step 2: Realise that you could actually do this at home, because it's a paper model.

Step 3: Be sad that you don't know how to make such models

Step 3: Be happy that sehrinde17 was kind enough to share how he does this

Step 4: Follow his instructions to the letter. If you don't like reading, watch the video and skip to Step 11.

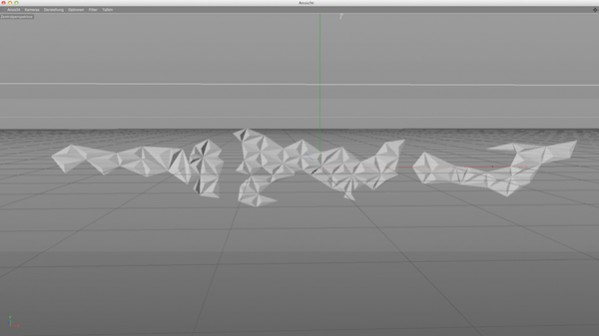

Step 5: Export a 3d mesh (Cinema4d, Blender or Aftereffects) as an .obj file.

Step 6: Download and install PePaKuRa Designer 3 (http://www.tamasoft.co.jp/pepakura-en/). Mac users, be sad because it's only for Windows.

Step 7: Import or drag and drop the .obj File in the Pepakura window. You can rotate the camera view and change some adjustments.

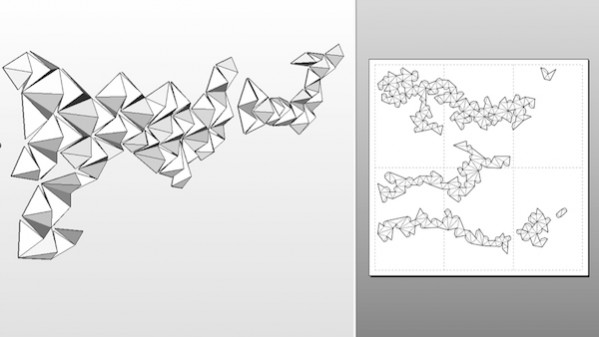

Step 8: Next click on "unfold". You can notice that some edges of the model are open now. The software calculates the best way to cut the 3d model in a flat piece.

Step 9: Print the generated design and cut / plot it.

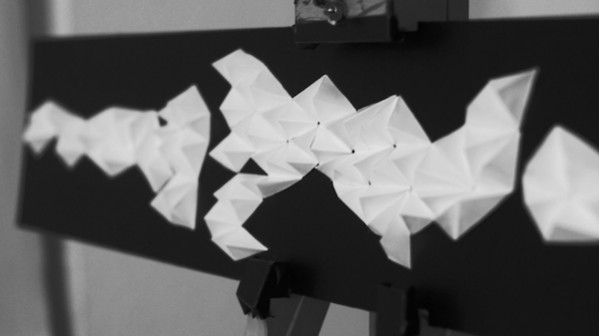

Step 10: Glue the parts together (this is the challenge!).

Step 11: Map it with any projection mapping tool that's called Resolume Arena 4.

Step 12: Head on over to http://www.sehrinde17.de to say thanks!

[Thelooca]

In order to keep mac people happy

On mac i use 123D make (free) https://itunes.apple.com/us/app/123d-ma ... 8186?mt=12

tutorial: https://www.youtube.com/watch?v=TGwZIyCvLaE

Or you can use this (http://wiki.blender.org/index.php/Exten ... aper_Model) plugin in blender to export any model as a papermodel

more info: http://blenderartists.org/forum/showthr ... ost1627111
