10x NDI beamer

[Filipsz]

Hi everyone,
Going to do next:

Server with 10Gb network card
Gcard 1080 or better
Optical connection between netcard and utp hub
Hub 10gb in/1 gb cat 6 out to deltacast neo n2h, hdmi to beamer

This must work, what do you think?
Any unexpected limitation, e.g. edgeblending?
Or standard behaviour as normal output?
Synchronisation?

Many thanks for any note

[drazkers]

This will 100% not work for edge blending or needing the projectors in sync.

If gaming cards sometimes go out of phase, that rig for sure is.

[Filipsz]

Sounds logic, but did you test it? Edgeblend via ndi?
With this deltacast boxes?
What if this boxes are synchronized..
Or the only synchronization is on the GC?
Not in resolume, if ndi output?
So many questions..

[drazkers]

These boxes don’t take genlock. How would you sync them?

[Arvol]

^ With magic and love

[Filipsz]

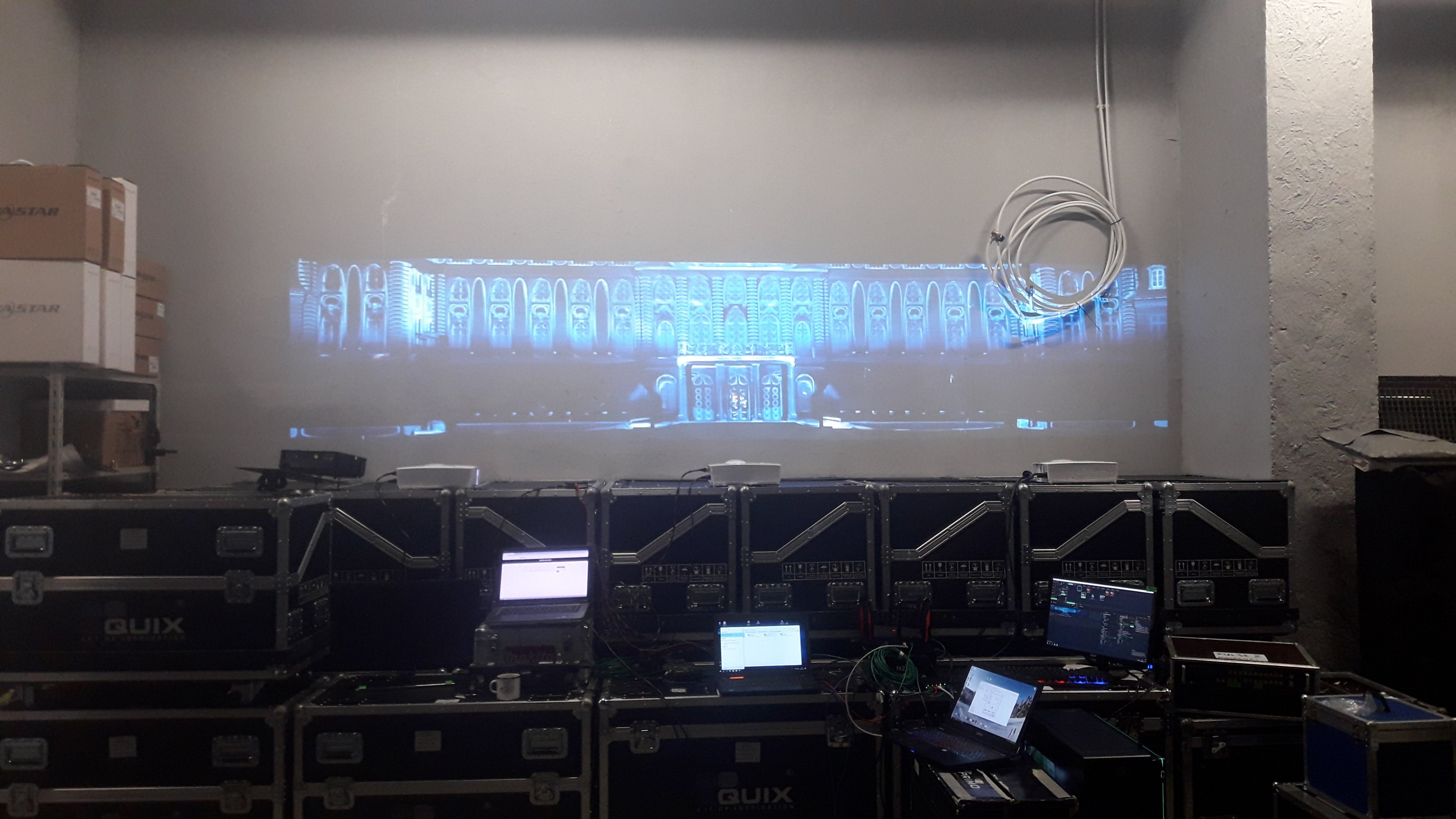

So it works!
Already tested with 3 beamers.
A bit of nerves but its done.
Compo 5760x1080
3x deltacast neo n2h
1 utp from arena server
1 switch 1gbit

In 14 days going to do 10 beamers, will work, surely.

[drazkers]

Take a video of it strobing white. Or hard cuts.

Even fast moving content should show seams.

[Filipsz]

No latency (almost)! 3 frames max
Perfectly smooth, videos, camera, everything as it should be.
No more problems with multiple outputs.

[Filipsz]

No, its ok. Transitions, everything. Really. I know what u mean and it itsnt there.

[Filipsz]

Btw its a movie picture.
If there is anything glitchin, u should see it
Otherwise its microseconds, not mili and its ok
