Hello.
I'm extremely new to wire.
I am making a patch that will let you select a different video file from a drop own menu. This will let me reduce about 35 layers in my composition.
Everything is working good so far. But I can't figure something out.
How do you display the duration of a video asset in wire to the clip window on resolume someplace?
Or how do you update the duration in the transport area to the current duration of the video asset that was selected.
Thank you.
Display duration of video asset
Re: Display duration of video asset
Updating params from Wire patch to the host is not possible currently.
Software developer, Sound Engineer,
Control Your show with ”Enter” - multiple Resolume servers at once - SMPTE/MTC column launch
try for free: http://programs.palffyzoltan.hu
Control Your show with ”Enter” - multiple Resolume servers at once - SMPTE/MTC column launch
try for free: http://programs.palffyzoltan.hu
-
EBMCreative
- Posts: 105
- Joined: Thu Dec 07, 2023 08:41
Re: Display duration of video asset
I hope that is coming soon.
Re: Display duration of video asset

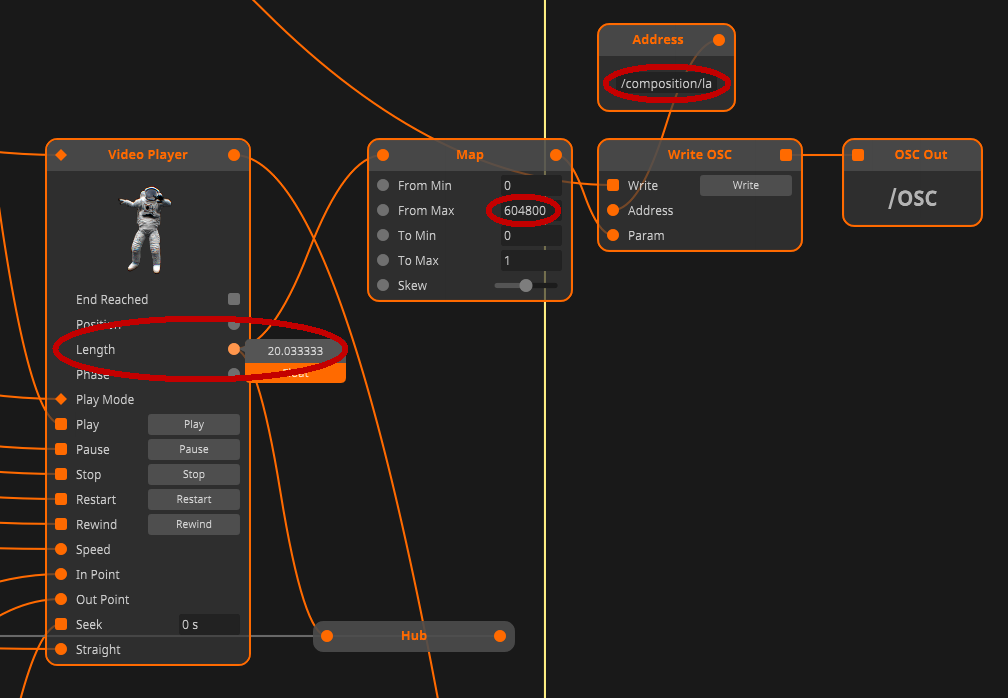

I tried sending the Video Player's Duration value to Resolume via OSC, using the OSC address for the clip duration. Original value not translated exactly, likely due to limit of precision of the normalised float.
--begin-wire-patch--
1696.3ocsX01TaiCD9uRF+4XGI4WEe5RSHcZmBzqvQ6LWXXjsURzUGKe1xA3X3+9sx1wwABgD5c7EbVuZ2U69rOZkezHRllxiTBYZgwI+4iFyxkKgGvTZeCYQjwM8MTxJAA8MDoYkJiadpeqdDTeiDd5b0hVMIHmcqIHVVp.4nNVEbSFKmsjq343ms.20KXa8Yww47hBP4aZbzE4w7biSdzXdtrLqP+D12i5gcsCH1dDsfnEhDXcofUfkEISRXYE7XiSlwRJ38MRgXv3DiqxYoEYxbkwS86XDOW+ivHW9sQ8FN9yqMgOlf8vddNGiI9xmFcZsQ.qjKkp55S0Nz3js1d5j1KjCQ7yj2FFZ4oxXvMPN9IHma.oelN3XkpERHSZTTFlItmmX.gHSwmKye.jxmMCvJfrXdVh7gk7T0Ur74bkdsgPlKZAnETbjk4QbS0CY7Bi1sz2E4b3Wq34E.bSujkr+R6MeH.Do5mH1Z3fRaFjdeGyKhxEYpJ8MzNVTjkvd37ZKVjcex0h3KgT3Yh3d2i64aQrsHfhhXH3DyDZbgwrYDFKJNzLjh3lNynglT6vHy3PNxINJJFxXvZRDQ7zB9DQBu1aMBZ71H4xk77HAKoWyK5wVwDIrvDdOMnsWmr1R3EM4hjxk7ea8qJrh.zM.ryEyEorj+iyejsye+cIKQnfRmMIv0qeS3nZV9BtX9Bv2XT.zFemHF5hOASIHXkErU7cDau2pIQGMpEkKCSqSLvRKy0OrPoxNY5foCddFZEOMtBKd4W+wWzsRo76UmCv1OEqAtvtQigqa1oAUnWkJWDVppEJRKTPTW+CcpDLkHEvx.j.rNKoDjf0wUnrLMtnaFIfrIeXCOeuN0ZSrPtAtTaefX5AcOEhZ4SQtDeaGPHXonDVQsygXzvW2zAMhltgtT.1E6ZFZ66XF4GwnN3HNAuUJDWYAYzOg0tB.vRiJBBYMDd1LOFBUIpZmoZ1kZ9wM6PMmc6tKsLIQuAWHhiqXb5jTtosRdwki5cQotsts.c6JQgHT2FnxK4ZZLJ8cmg6vvalBNnlp9vzWqEti5U+qUWiYIRlxX20PLx2xGQ7Q.ansMB4GfItcf4tUkUXi4Z433gbbnDbvQWZC9.0yzYrmm4Gl.E4QfPBwaRvD5ntkVx6nzt9btM69BH6mNuy9e5.nWISVHzszSG.LifCmNf.xSDYvSNSGnVeh1zAazLjufsR.zLSGDWlypXDdZqih2305jbqS0rC2kKT7tkEfMaqp39Pd6.O7xR9F34209pG.R2K.kf9UvmPh6rpCD2ud0UtMJslo95lJZipOpY8VTSIJzGbMFH3hYJ1zAUVX5fw+35oCNikqDo8tTwCCgx5zArjrEfNN1D7se9ON+ie4zam7sK93sHh0R4Jv9.Eol57oNdpZMWUGNY47kkIJQVh.Fn.5IDpw7Lcj.idEsfAS5kLB5ST0BfMbjN39w08rsP8NWluDNZ62qOxneuuKTK5MTadvTyzSUYCmRLSWlVaDnsY83eeJ8LQRhnfCPXceH1Ivyyyxq8u.OjGUe9zgdFj9uc0W6hvVHL1i3iqZA81UWsimsksieyaOpN5ISF4a534OwLXL4Tyg3ICc8N0wyYXP2NZ62EYsYlTjp1eyELy6aoFjcqRs9XeWBkP8Bp1QYrxh2tsrFue.pAUJEfQOHMuSjFe.JVv4+b+69hLNOdO6bsJJY1g3Kf4qFxzpZnTlrQupIte6yGq5t680Jx02fCx4kjPP7e21am65PfWHlCCAp6n0CPZtjcuYr.lqtn9BY6mNpcI0J8FGRtVe.Ddrt.VxA5hpwQNB6Wq+AZ7hexu6Hrck5GnoUxiL22rfiv7GUduYAGj428zOtdV91dNXpmueMk2KYIgWXs8zQGESIkRFa5.SNYFPFOxDXKQisQim3Gb5u5Xsqg1uNQ.LwV.B0AhteZkmOm7tXd.7xdzvxssrue5o5Z2970VTNMLB6p++4s36tE94co6nKbqFsW1H0sWYW8BaC22EbdaD6FtyyXYuAko66mx7fmuSV8EDJLipma40UtZ1VQbysdecsd6KMh1b6BJF4fP1TT6rHtT33aGnyo8j6WaVDBchoi6oTygPWpIAeJhNx2E8gg9+5yhrcCw+y2sXWP9tWIX6RTaUXCRZXysgdczD3hRQ0mXCVQd02yRWBHAvXnvrm11ct5Nww1h.BQTreUMnuw+H0e1QX1RW3Zf.0nma.J.ibcqFaIo9ijpid8Wan9Fw0G4Wc4iZn7MO8z+B3Wsyv.
--end-wire-patch--
Not shown: Video In > On Change > Write OSC : Write

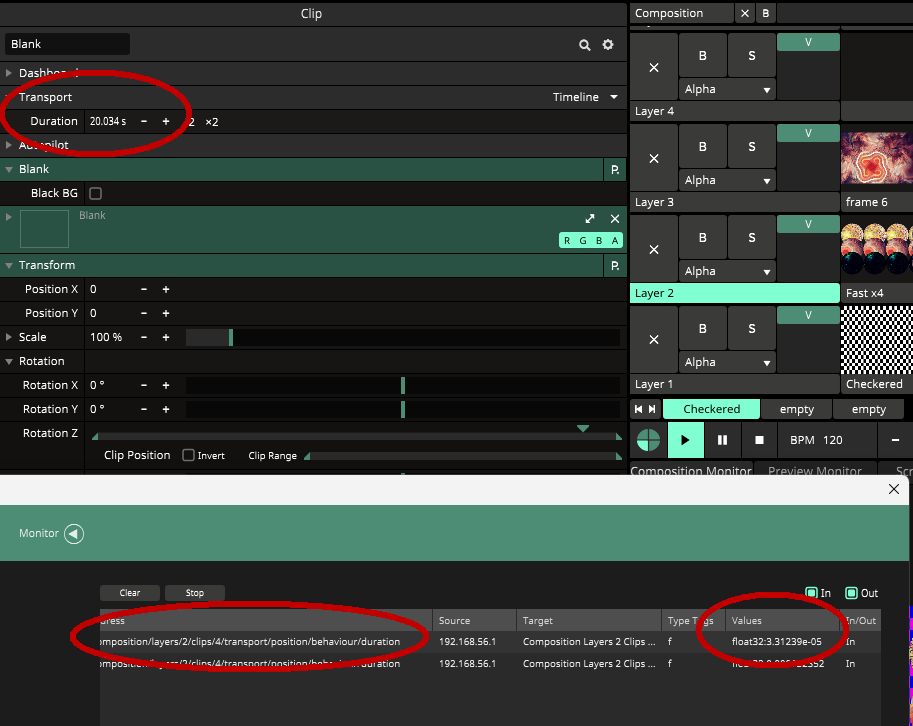

The OSC message received by Resolume, address matches shortcut address for the (specific) clip's duration and converted back from the normalised float (range 0 to 1) back into seconds.
Original value: 20.033333 s
Resolume interpreted as: 20.03433 s
Discrepancy: approx 1 ms
The scaling factor is a week of seconds:
7 days x 24 hours/day x 60 minutes/hour x 60 seconds/minute = 604800 seconds
It seems to work, however the specific clip's OSC address must be supplied. It could be a parameter to your Wire source/effect/mixer. Not especially elegant, but functional.
Fatal flaw! I hadn't used the OSC Out node before. It worked in the Wire editor, but maybe it does not work from inside Resolume. eg what OSC output does it use? Can a plugin running in Resolume send OSC messages to Resolume?
-subpixel
--begin-wire-patch--
1696.3ocsX01TaiCD9uRF+4XGI4WEe5RSHcZmBzqvQ6LWXXjsURzUGKe1xA3X3+9sx1wwABgD5c7EbVuZ2U69rOZkezHRllxiTBYZgwI+4iFyxkKgGvTZeCYQjwM8MTxJAA8MDoYkJiadpeqdDTeiDd5b0hVMIHmcqIHVVp.4nNVEbSFKmsjq343ms.20KXa8Yww47hBP4aZbzE4w7biSdzXdtrLqP+D12i5gcsCH1dDsfnEhDXcofUfkEISRXYE7XiSlwRJ38MRgXv3DiqxYoEYxbkwS86XDOW+ivHW9sQ8FN9yqMgOlf8vddNGiI9xmFcZsQ.qjKkp55S0Nz3js1d5j1KjCQ7yj2FFZ4oxXvMPN9IHma.oelN3XkpERHSZTTFlItmmX.gHSwmKye.jxmMCvJfrXdVh7gk7T0Ur74bkdsgPlKZAnETbjk4QbS0CY7Bi1sz2E4b3Wq34E.bSujkr+R6MeH.Do5mH1Z3fRaFjdeGyKhxEYpJ8MzNVTjkvd37ZKVjcex0h3KgT3Yh3d2i64aQrsHfhhXH3DyDZbgwrYDFKJNzLjh3lNynglT6vHy3PNxINJJFxXvZRDQ7zB9DQBu1aMBZ71H4xk77HAKoWyK5wVwDIrvDdOMnsWmr1R3EM4hjxk7ea8qJrh.zM.ryEyEorj+iyejsye+cIKQnfRmMIv0qeS3nZV9BtX9Bv2XT.zFemHF5hOASIHXkErU7cDau2pIQGMpEkKCSqSLvRKy0OrPoxNY5foCddFZEOMtBKd4W+wWzsRo76UmCv1OEqAtvtQigqa1oAUnWkJWDVppEJRKTPTW+CcpDLkHEvx.j.rNKoDjf0wUnrLMtnaFIfrIeXCOeuN0ZSrPtAtTaefX5AcOEhZ4SQtDeaGPHXonDVQsygXzvW2zAMhltgtT.1E6ZFZ66XF4GwnN3HNAuUJDWYAYzOg0tB.vRiJBBYMDd1LOFBUIpZmoZ1kZ9wM6PMmc6tKsLIQuAWHhiqXb5jTtosRdwki5cQotsts.c6JQgHT2FnxK4ZZLJ8cmg6vvalBNnlp9vzWqEti5U+qUWiYIRlxX20PLx2xGQ7Q.ansMB4GfItcf4tUkUXi4Z433gbbnDbvQWZC9.0yzYrmm4Gl.E4QfPBwaRvD5ntkVx6nzt9btM69BH6mNuy9e5.nWISVHzszSG.LifCmNf.xSDYvSNSGnVeh1zAazLjufsR.zLSGDWlypXDdZqih2305jbqS0rC2kKT7tkEfMaqp39Pd6.O7xR9F34209pG.R2K.kf9UvmPh6rpCD2ud0UtMJslo95lJZipOpY8VTSIJzGbMFH3hYJ1zAUVX5fw+35oCNikqDo8tTwCCgx5zArjrEfNN1D7se9ON+ie4zam7sK93sHh0R4Jv9.Eol57oNdpZMWUGNY47kkIJQVh.Fn.5IDpw7Lcj.idEsfAS5kLB5ST0BfMbjN39w08rsP8NWluDNZ62qOxneuuKTK5MTadvTyzSUYCmRLSWlVaDnsY83eeJ8LQRhnfCPXceH1Ivyyyxq8u.OjGUe9zgdFj9uc0W6hvVHL1i3iqZA81UWsimsksieyaOpN5ISF4a534OwLXL4Tyg3ICc8N0wyYXP2NZ62EYsYlTjp1eyELy6aoFjcqRs9XeWBkP8Bp1QYrxh2tsrFue.pAUJEfQOHMuSjFe.JVv4+b+69hLNOdO6bsJJY1g3Kf4qFxzpZnTlrQupIte6yGq5t680Jx02fCx4kjPP7e21am65PfWHlCCAp6n0CPZtjcuYr.lqtn9BY6mNpcI0J8FGRtVe.Ddrt.VxA5hpwQNB6Wq+AZ7hexu6Hrck5GnoUxiL22rfiv7GUduYAGj428zOtdV91dNXpmueMk2KYIgWXs8zQGESIkRFa5.SNYFPFOxDXKQisQim3Gb5u5Xsqg1uNQ.LwV.B0AhteZkmOm7tXd.7xdzvxssrue5o5Z2970VTNMLB6p++4s36tE94co6nKbqFsW1H0sWYW8BaC22EbdaD6FtyyXYuAko66mx7fmuSV8EDJLipma40UtZ1VQbysdecsd6KMh1b6BJF4fP1TT6rHtT33aGnyo8j6WaVDBchoi6oTygPWpIAeJhNx2E8gg9+5yhrcCw+y2sXWP9tWIX6RTaUXCRZXysgdczD3hRQ0mXCVQd02yRWBHAvXnvrm11ct5Nww1h.BQTreUMnuw+H0e1QX1RW3Zf.0nma.J.ibcqFaIo9ijpid8Wan9Fw0G4Wc4iZn7MO8z+B3Wsyv.
--end-wire-patch--
Original value: 20.033333 s
Resolume interpreted as: 20.03433 s
Discrepancy: approx 1 ms
The scaling factor is a week of seconds:
7 days x 24 hours/day x 60 minutes/hour x 60 seconds/minute = 604800 seconds
It seems to work, however the specific clip's OSC address must be supplied. It could be a parameter to your Wire source/effect/mixer. Not especially elegant, but functional.
Fatal flaw! I hadn't used the OSC Out node before. It worked in the Wire editor, but maybe it does not work from inside Resolume. eg what OSC output does it use? Can a plugin running in Resolume send OSC messages to Resolume?
-subpixel
