Animating slide-in-and-out of elements on clip triggering

Post by badbwoy89 »

I have a background for speakers' presentations, and I need to animate the appearing elements like session titles and sponsor logos so that they slide in from one side and slide out to the same side when I trigger a new clip. In other words, suppose there's a title; I trigger a scene with a presentation, and first the title rolls out to the left, then a screen with the presentation descends from above.
My first idea was to create this as a transparent video in After Effects, placing the elements on a canvas of the original resolution, but I suspect this isn't entirely optimal and there might be better ways.

Next thing is that organisators asked me if i could do a little animation - when presentation slides in from above - it is placed inside a stylised tv and they want it to display white noise or oldschool screen pattern (they haven't decided yet). So my thought was 3 layer system - top layer is tv itself, next comes white noise/pattern video and below that comes screen capture of presentation (of course after i'll figure out initial transition). Question is pretty much the same - is it reliable, or are there better ways to do this?

Tnx

Zoltán
Team Resolume
Posts: 7644
Joined: Thu Jan 09, 2014 13:08
Location: Székesfehérvár, Hungary

Re: Animating slide-in-and-out of elements on clip triggering

Post by Zoltán »

animate the appearing elements like session titles and sponsor logos so that they slide in from one side and slide out to the same side
Layer transitions has Push blends https://resolume.com/support/en/layers#layer-transition the would push in the same direction, on "fade" in and out.
little animation - when presentation slides in from above - it is placed inside a stylised tv and
How do you slide in the presentation?
If manually with a midi controller fader, then you could play the tv in a group (Arena only) above the content layer, and have the controller fader mapped to the y position of the group, and optionally a static source's opacity in the same group

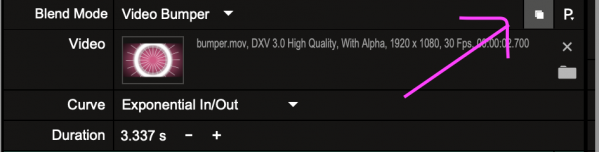

With Wire you can create custom transitions/blends like this. Cloning the Video Bumper could give a nice base.
Képernyőfotó 2025-10-14 - 18.08.19.png
