Resolume 7.21 Release | Transform Widget & Wire Parameter Grouping

Transform Widget

In Resolume 7.21, we're introducing the transform widget for Arena and Avenue. You can now move, scale, and rotate your content directly in the preview monitor! Additional tools like mirroring, center X/Y, and subdividing your footage can be accessed by right-clicking the widget. This widget allows you to transform either the composition, layer, group, or clip depending on your selection. No more fiddling with a bunch of sliders; just point and click to place your content where you want it.


New Monitor & Video Router Inputs
We have removed the option to show a monitor on the Composition, Group, Layer, and Clip Panel because it was buggy and not used by many people (we think/hope). However, we have replaced it with something better; now you can configure any monitor to show the Selected Group, Layer, or Clip. This way, it’s more flexible, and you can place the monitor for the selected item anywhere you like. The Video Router now also has the option to pipe in the Selected Group, Layer, or Clip. We have yet to come up with a good use case for this, but we’re sure some of you will find it useful.


Input Parameter Grouping

With Wire 7.21, you can now place your parameters in groups on the Dashboard panel. Nice and cozy. Groups will also show as foldable sections in Resolume Arena and Avenue. Patches with a lot of parameters will greatly benefit from the use of groups as you can now categorize them as you see fit.

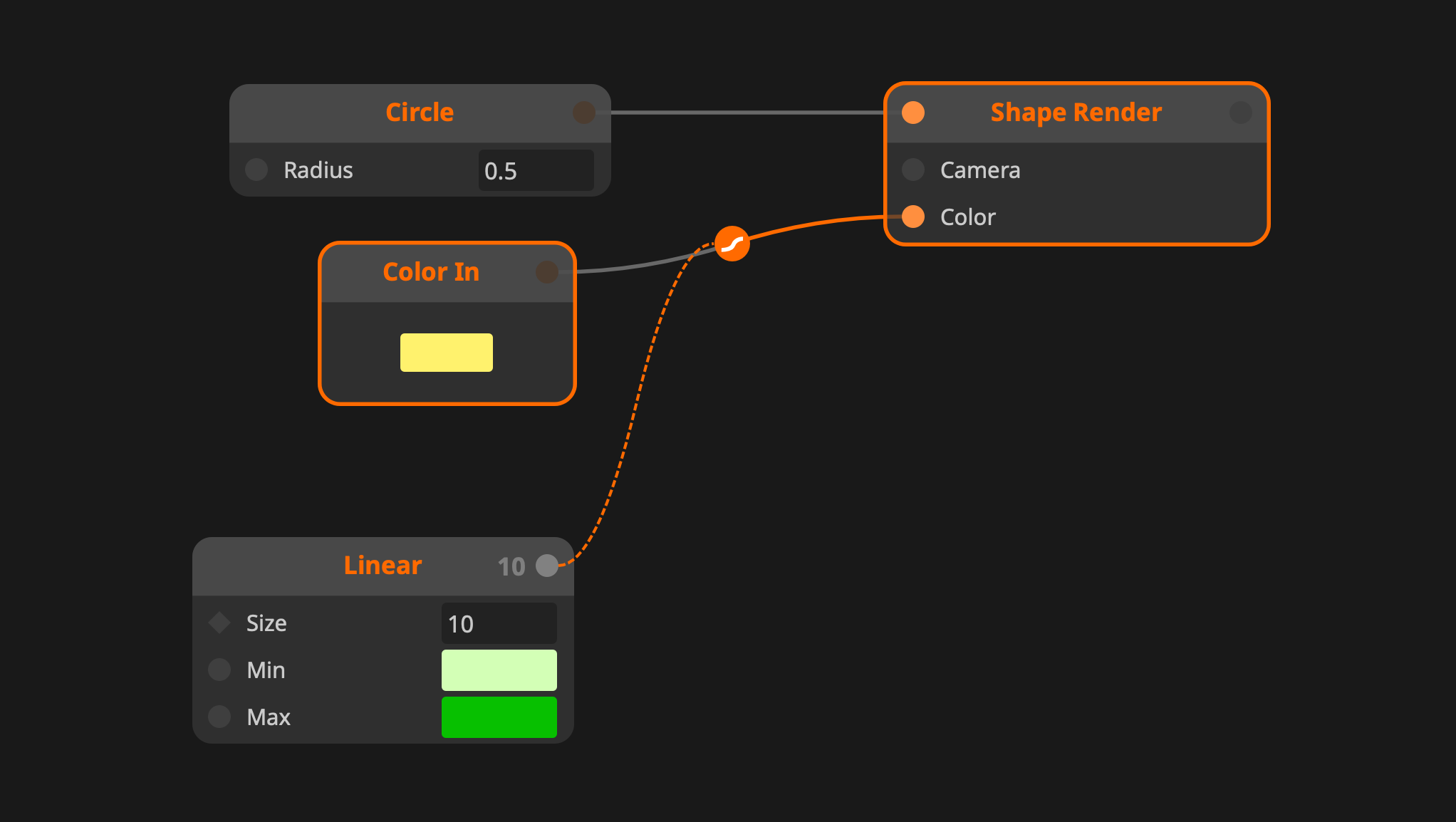

Combining Cords

Another feature to speed up patching in your big spaghetti patches! You can now drop a cord onto an existing connection to replace (or add to) it. When working in event-flow, you can hold down the ALT key while doing so to combine the cords.

5 New Nodes

Wire gets 5 new nodes with this update: Perlin, Fract, Noise Generator, Collapse Triggers, and Anchor Point. The Perlin Node allows you to run any float type through a Perlin Noise algorithm. The Fract Node returns the fractional part of a floating point number. The Noise Generator provides you with a constant stream of random values. The Collapse Triggers Node allows you to collapse multiple triggers that happen on the same frame into one. The Anchor Point Node allows you to get the center, top-left, bottom-right, etc to set the anchor point of the Transform node so it will then rotate around that point.

REST API Updates
Our REST API is used more and more to control Arena & Avenue. So we have fixed a few bugs, corrected the documentation, and as requested by our loyal API warriors, you can now clear clips and groups through the Resolume REST API.

Avenue & Arena 7.21.3 Hot Fix List
#21828 Extremely large composition and shortcut preset take forever to load on windows
#21815 Persistant clips not triggerable after reopening composition in 7.21
#21886 Overlapping persistent clip thumbnails not working

Wire 7.21.3 Hot Fix List
#21832 Shape renderer with transform scale = 0 renders full solid

Avenue & Arena 7.21.2 Hot Fix List
#21780 Reloading composition reverses column order

Avenue & Arena 7.21.1 Hot Fix List
#21698 Screen monitors stretch image if different aspect ratio than composition
#21696 Crash removing palette presets
#21732 Black frame flash when retriggering syphon

Avenue & Arena 7.21.0 Fix List
- #20499 Scrollbar for decks menu
- #20788 Add important directories to file browser dropdown
- #21038 Memory leak with some compositions
- #21098 Show what we're doing in the splash screen
- #21185 Update to NDI 6
- #9467 Hide De-interlace parameter when camera does not support it
- #21384 Hang with persistent syphon clips loading composition
- #16994 Undo redo actions on clip in layer duplicate no worky
- #17178 Palette Midi CC shortcuts no worky
- #18830 Phone origin h264 thumbnails can be upside down
- #19131 Failing to start on utf8 character folder names
- #20559 Rotation information in jpeg is missed
- #21134 Copy monitor image makes alpha channel black on Windows
- #21154 Make FPS color dependend of composition FPS
- #21193 Blend Mode Menu falling off screen sometimes
- #21222 Rotated mp4 plays with wrong orientation on windows
- #21246 Transport icons for SMPTE / Pioneer / Denon overlapping with text
- #21252 Composition speed not effective on clip after setting a clip to BPM sync - BPM transport
- #21259 Custom OSC message sends out wrong messages
- #21286 Video router source selector should get highlighted with the shortcuts when selected
- #21078 Midi input monitor stops working when Resolume is in midi shortcut editing
- #21353 REST-API swagger wrong DELETE endpoint specifications
- #21178 REST-API command /composition/layers/{layer-id}/clips/{clip-id}/open with invalid encoded URL returns StatusCode 200
- #21089 REST API documentation on Website is not up to date
- #19562 REST API docs page is incomplete
- #21179 REST API no response when opening a new source on a clip, where another source is already present

Wire 7.21.1 Hot Fix List
#21721 Some ISF connections broken by quoted json values
#21731 Crash connecting Concatenate to Concatenate

Wire Fix List 7.21.0
- #15601 Reset inlet for Delay Node
- #18157 Allow Shape Repeat to go to 0
- #19378 Add Horizontal Mirror and Vertical mirror as wrap modes to Texture Material
- #18868 Sequence should accept float to Step, maybe also switch to float mode
- #19184 Join resets values when instance count is changed
- #20997 Shape Render node not working with 992 or more instanced color inputs
- #19461 Shift node does not support Attribute Flow
- #19508 Pie node shows wrong result at 1
- #19684 2D render breaks if first channel is an undefined input
- #19828 Changing Switch from signal to attribute crashes with some patches
- #19835 UV Offset has inconsistent coordinate system
- #19844 Snapshot functionality does not adhere to node resolution
- #20201 Invalid connection connecting float to a texture mode gate
- #20379 Replacing Input nodes with hubs causes invalid connections
- #21080 Camera works incorrectly in the Shape world
- #21139 Derivative node gives unexpected result
- #21168 Autolayout confused by delay node
- #21211 Pie shape broken when angle is 1
- #21244 Search for node ID with stats panel
- #21279 Lower the minimum resolution of the circle node
- #21385 Instanced ISF node breaks connections if edited, copied or saved
- #21305 Alpha blending in 2D renderer is incorrect
- #21387 Alpha blending in Text Renderer is incorrect
- #21465 Alpha blending in Slice renderer is ... incorrect
- #21464 Sending multiple textures to Arena from Wire has issues (and alpha is incorrect)
- #21481 Blend Mode add is incorrect in Merge Node
